S7016CD/HCP4A軸承
SKF S7016CD/HCP4A軸承是鼎力晟業長期代理的產品，鼎力晟業與SKF公司具有長期的S7016CD/HCP4A軸承采購計劃，可以為國內用戶提供足夠數量的SKF S7016CD/HCP4A軸承，讓您的工廠無憂運轉。
型號：S7016CD/HCP4A
品牌：SKF
內徑：80
外徑：125
厚度：22
系列：角接觸球軸承, 精密, S .. CD/HC, sealed, contact angle 15°, hybrid
【
手機版 S7016CD/HCP4A軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：[email protected]

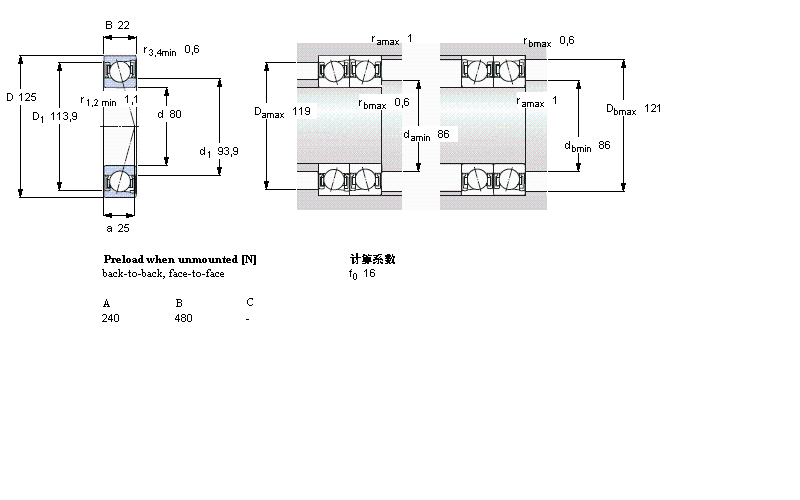

SKF S7016CD/HCP4A尺寸圖紙
S7016CD/HCP4A軸承基本參數
| 角接觸球軸承, 精密, S .. CD/HC, sealed, contact angle 15°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 80 | 125 | 22 | 65 | 61 | 2,55 | 13000 | - | 0,71 | S7016 CD/HCP4A | - | |
角接觸球軸承, 精密, S .. CD/HC, sealed, contact angle 15°, hybrid
